Three 10Gbps USB Type-A ports
USB 3.2 Gen 2. Each port is capable of 10Gbps; the three share the card’s total bandwidth, so one port runs at full speed while the others are idle. Backward compatible with 5Gbps, 480Mbps, 12Mbps and 1.1Mbps devices.
Full Height · PCIE-10GUSB3A

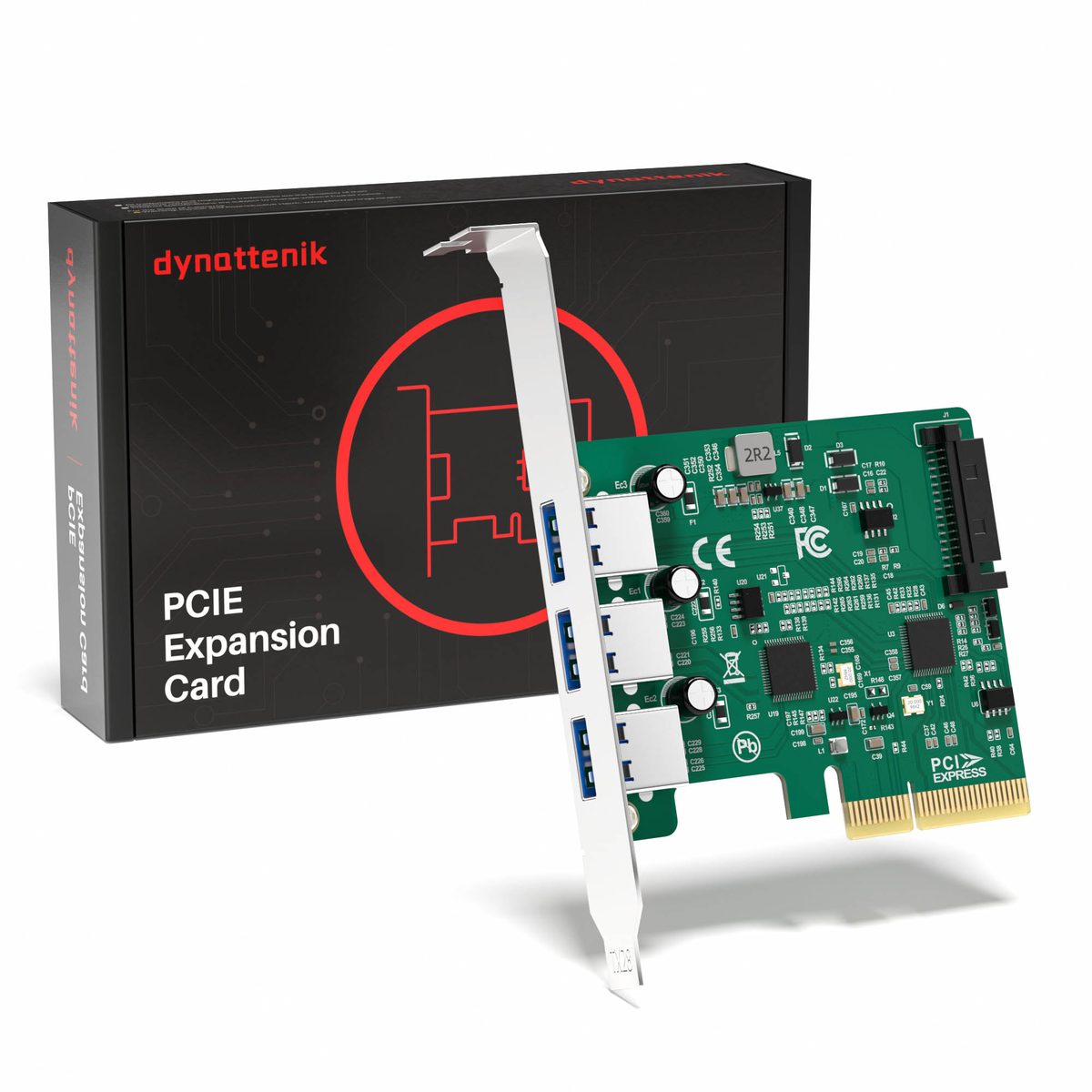

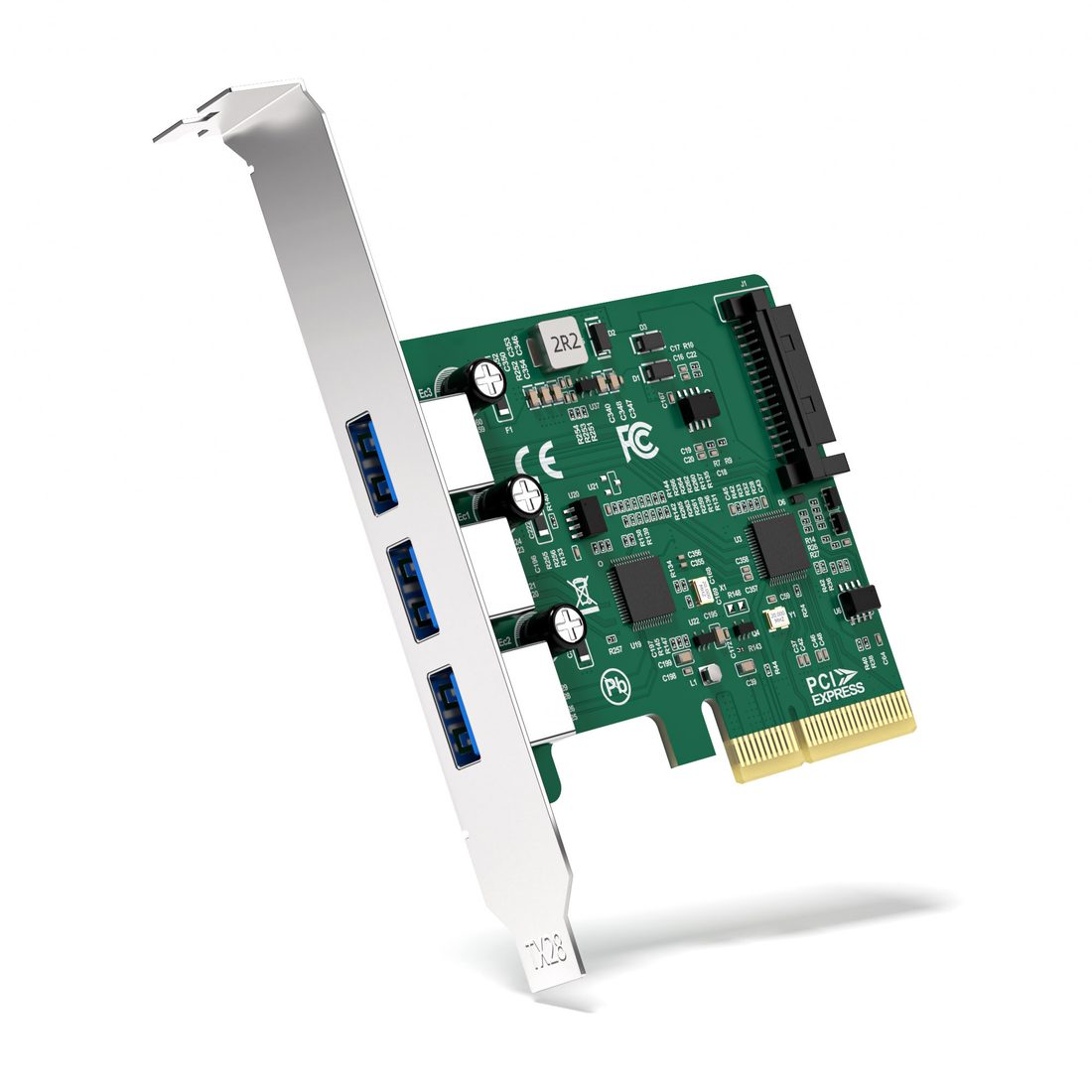

TrioCreator 3A Full Height Three 10Gbps USB ports on a single PCIe slot
A USB hub splits one link across everything plugged into it. This card gives you three USB 3.2 Gen 2 ports on a full-height bracket, so it drops into a standard ATX or Micro-ATX desktop and each port can reach 10Gbps when the others are idle.
- 3 × USB-A at 10Gbps
- PCIe x4 / x8 / x16
- SATA auxiliary power
- Windows 10, 11 and Ubuntu
Full-height bracket
Windows · Linux
Plug and play
10GbpsPer port
3×USB Type-A
x4–x16PCIe slot
What you get
Three fast ports, one slot

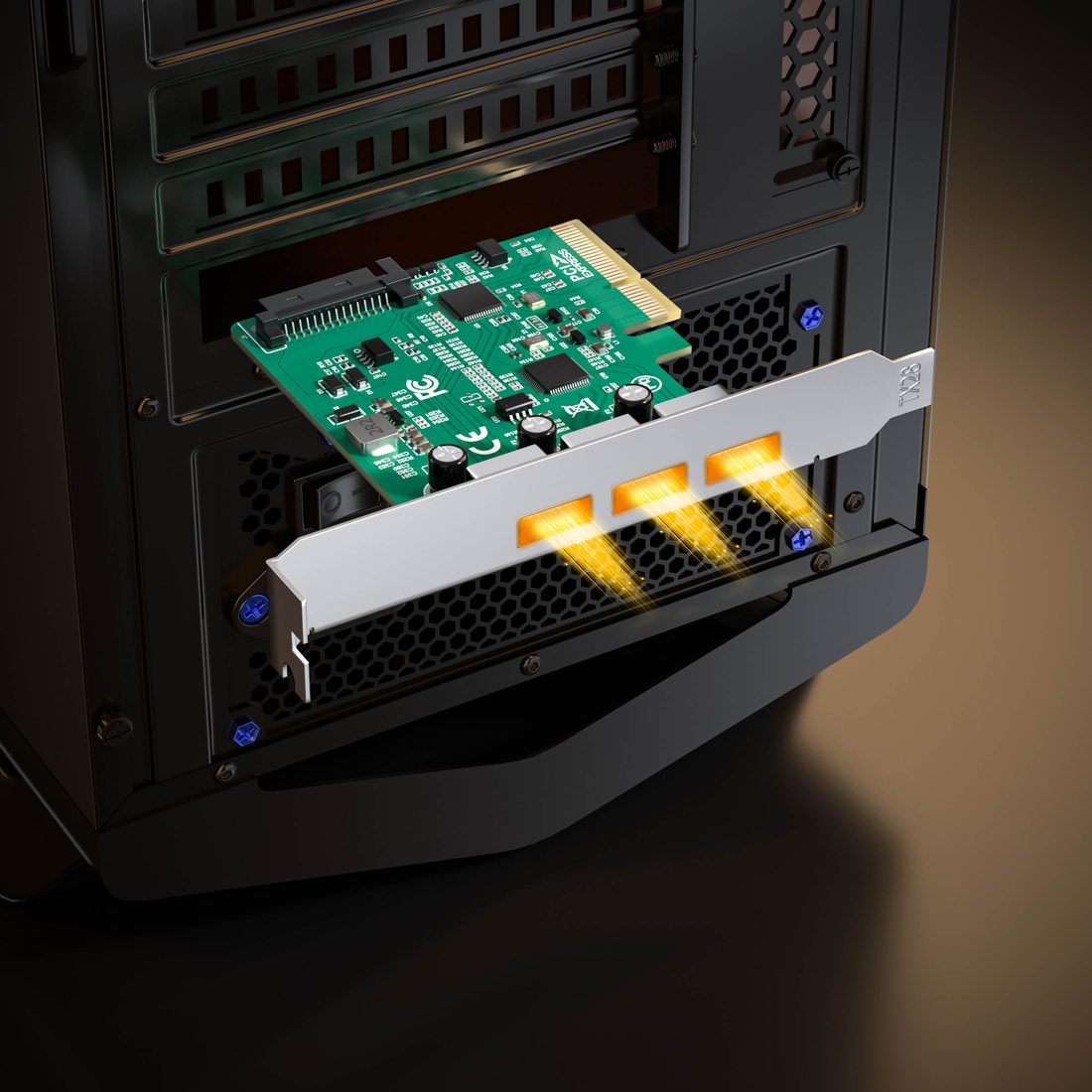

Fits a standard full-height slot in ATX and Micro-ATX desktops, towers and full-size workstations.

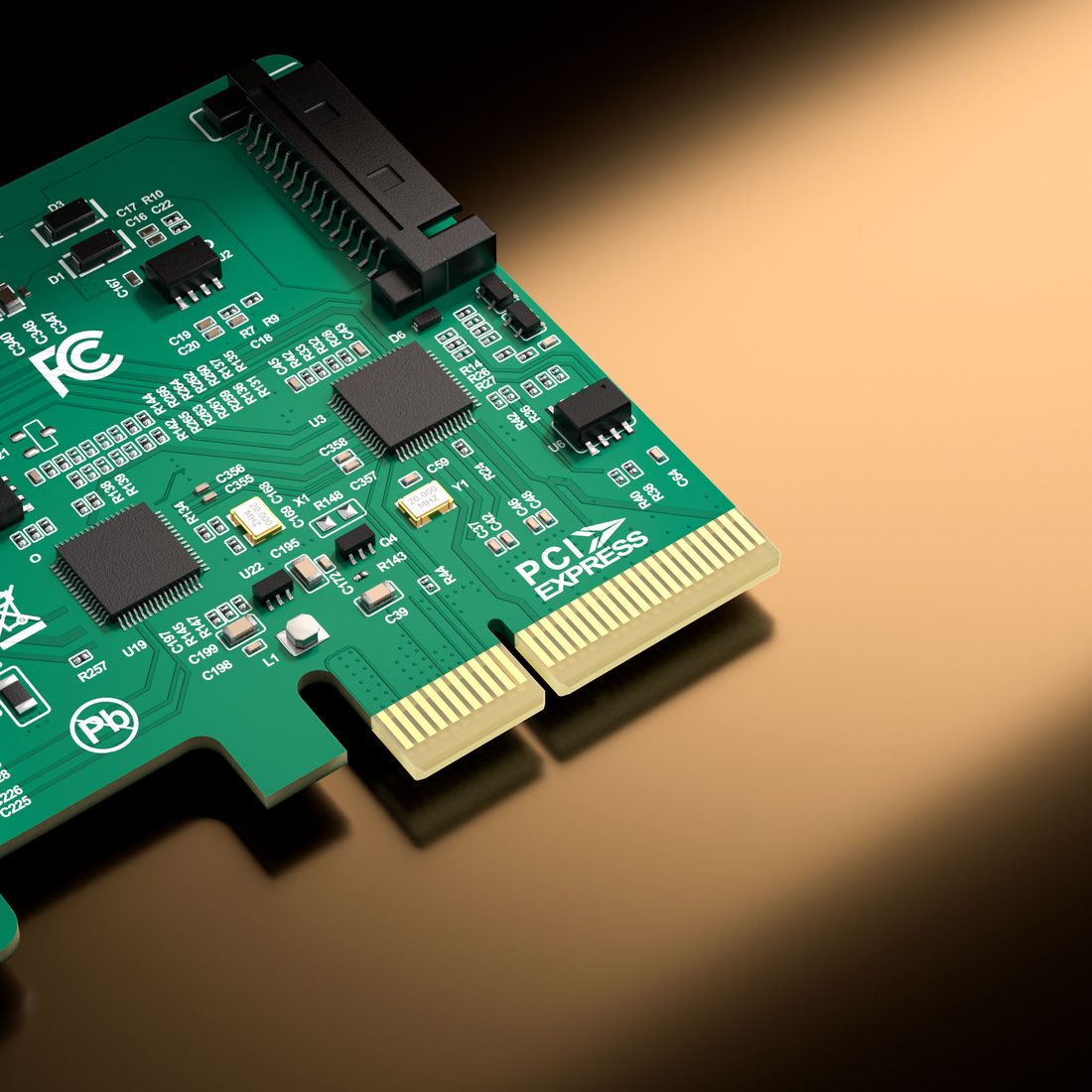

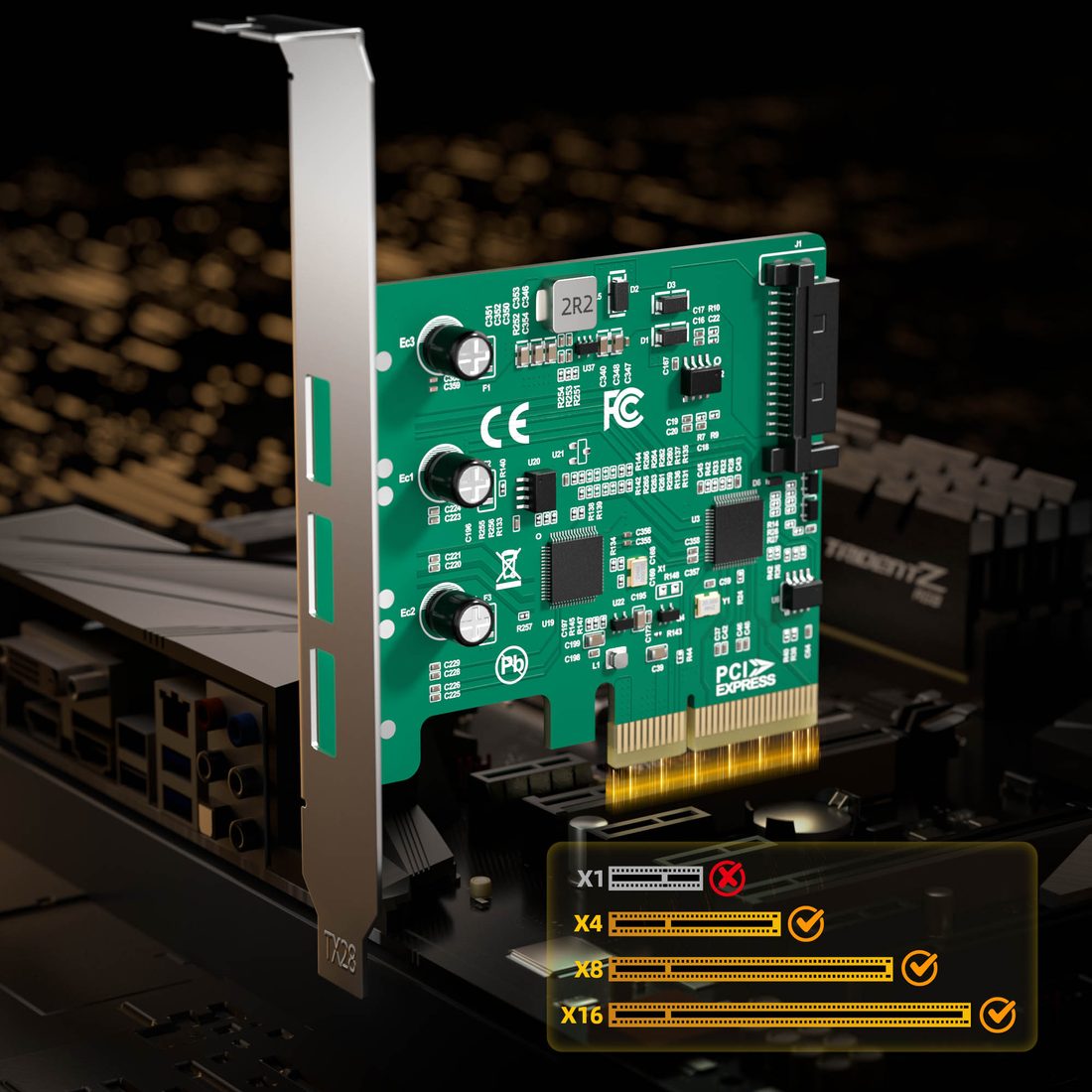

Fits x4, x8 and x16 slots
Works in PCIe 2.0, 3.0 and 4.0 slots. Maximum throughput is limited when the card is installed in a PCIe 2.0 slot, which is a property of the slot rather than the card.

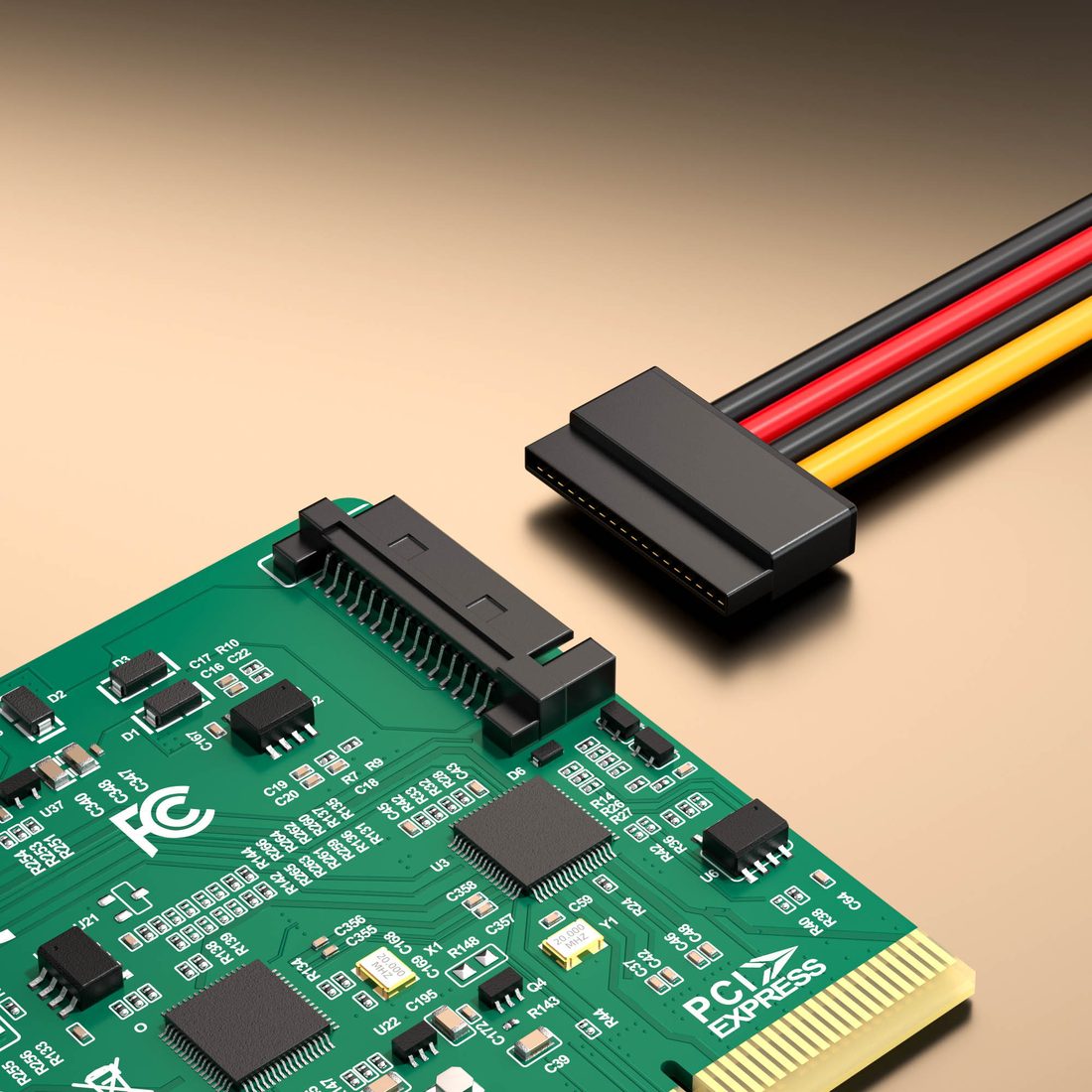

Dual power supply architecture
Draws power from the PCIe slot for most low-power USB devices. A SATA auxiliary connector is there for high-power peripherals, so a bus-powered drive cannot brown out mid-transfer.
Plug and play on Windows and Linux
Windows 10, Windows 11 and Ubuntu Linux. No driver disc to lose; the ports appear as standard xHCI controllers once the card is seated.
Overvoltage protection and stable rails
Onboard voltage-control capacitors and overvoltage protection keep the ports steady under heavy workloads, rather than leaving the rail to sag once all three run at speed.
Onboard power and activity LEDs
The card carries its own indicator LEDs, so you can see at a glance that it has power and that a device is negotiating a link before you go looking at drivers.
Product gallery
A closer look
Click any image to open it full size.
Technical data
Technical specifications
Model PCIE-10GUSB3A — 3-port USB 3.2 Gen 2 PCIe expansion card, full-height bracket.
| Brand | dynattenik |
|---|---|
| Model No. | PCIE-10GUSB3A |
| Bracket | Full-height bracket |
| Ports | 3 × USB Type-A |
| USB standard | USB 3.2 Gen 2 (10Gbps) |
| Per-port speed | Up to 10Gbps, shared across the three ports |
| Backward compatible | 5Gbps, 480Mbps, 12Mbps, 1.1Mbps |
| Host interface | PCIe 2.0 / 3.0 / 4.0 |
| Slot size | PCIe x4, x8, x16 |
| Power | PCIe slot, with SATA auxiliary connector for high-power devices |
| Protection | Overvoltage protection and onboard voltage-control capacitors |
| Operating systems | Windows 10, Windows 11, Ubuntu Linux |
| Installation | Plug and play |

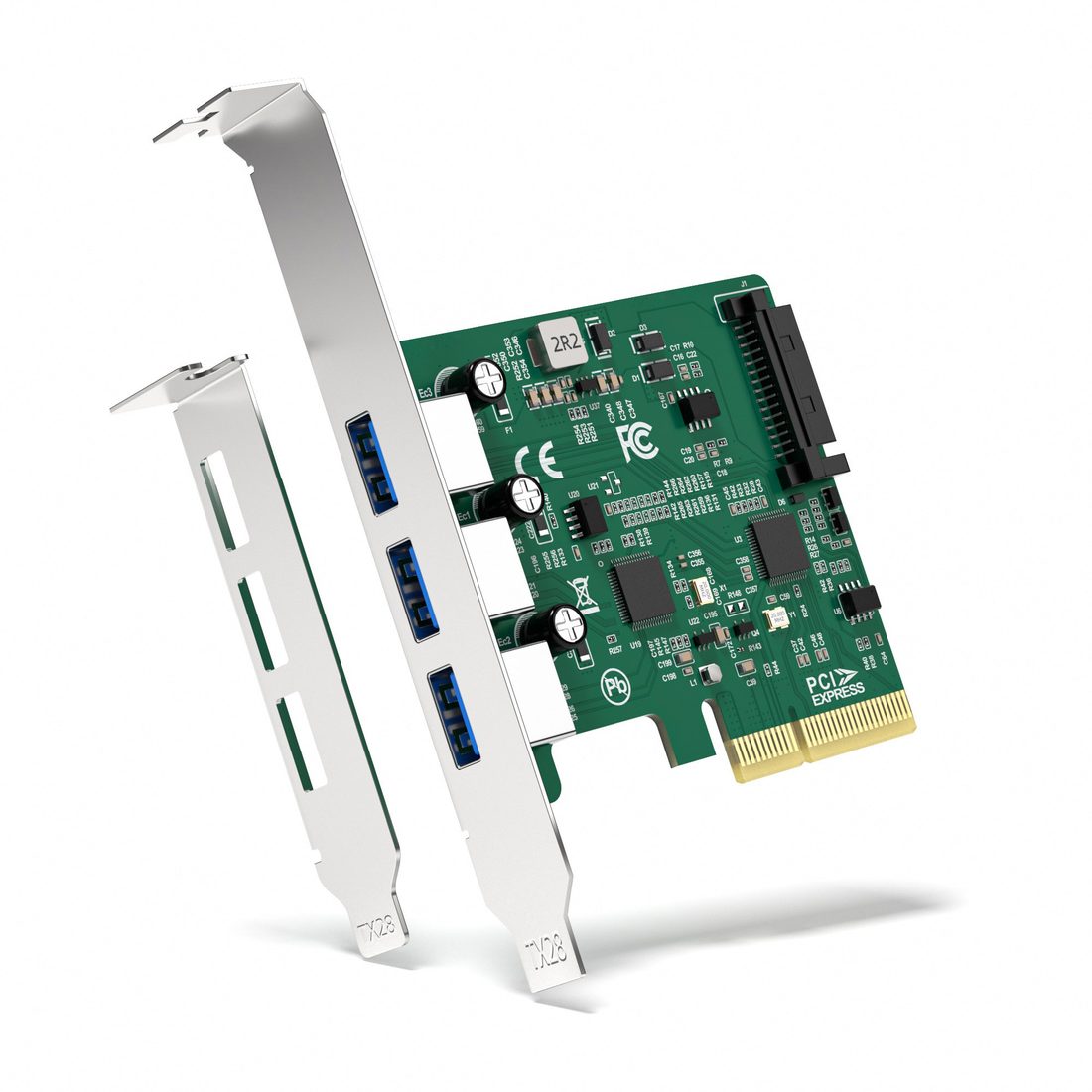

Choosing a bracket: Building into a small form factor PC or a low-profile server? The same card ships on a half-height bracket. See the low-profile bracket version.
Ready to free up your USB ports?
Three 10Gbps ports, one PCIe slot, full-height bracket.
